Mitsubishi Forklift 2.5 Ton

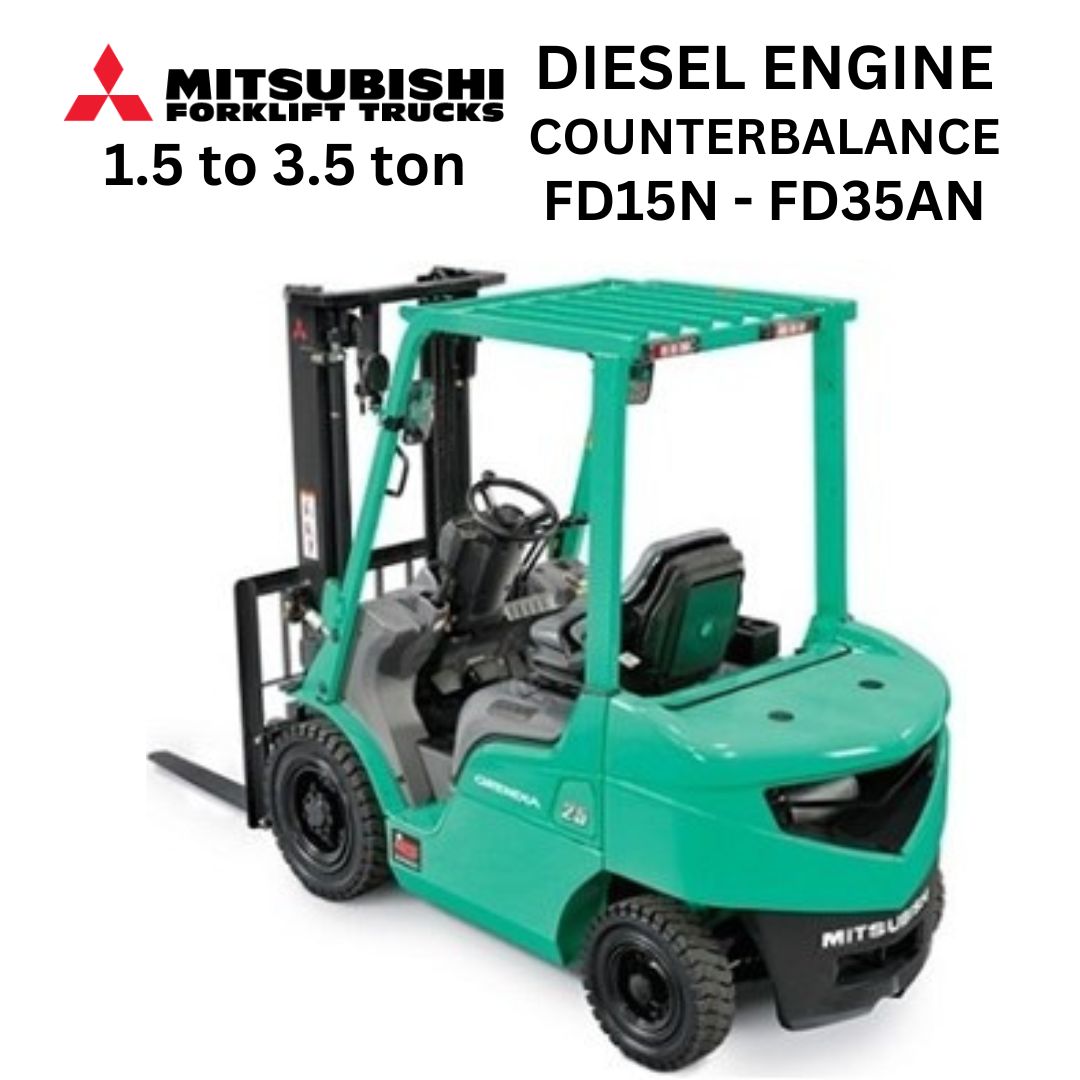

Spesifikasi Mitsubishi Forklift 2.5 Ton Model FD25N

Characteristics

• Type Of Truck: Diesel Engine Truck

• Manufacturer’s model designation: FD25N

• Load Capacity: 2.500 kg / 2.5 tons

• Load Center: 500 mm

Performance

• Maximum Fork Height: 3.000 mm

• Free Fork Height: 145 mm

Speeds

• Lifting Loaded: 630 mm/s

• Lifting Unloaded: 660 mm/s

• Turning Radius: 2.380 mm

Dimensions

• Overall Length: 3.480 mm

• Fork dimensions (thickness, width, length): 40×122×920 mm

• Fork Spread (Out to Out Min. / Max.): 244 ~ 1.000 mm

Powertrain – Engine

• Model: S4S

• Max. Rated Power / rpm to DIN 70020: 38.1 kW/2250 rpm (49.1 ps/2250 rpm)

• Max. Rated Torque / rpm to DIN 70020: 185 Nm/1700 rpm

• Displacement: 3331 cc

• Fuel Tank Capacity: 66 liter

• Transmission: Manual/Powershift

Layanan Tambahan
Kami juga melayani rental / sewa forklift Bekasi

• Tersedia sparepart forklift

• Tersedia attachment forklift

• Service forklift 2.5 ton
